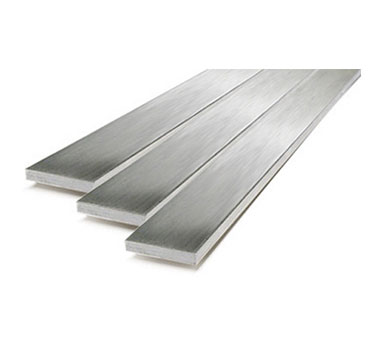

SS 904L Flat Bars

SS 904L Flat Bars

SS 904L Flat Bars are used for manufacturing industrial components and welded fabrications. SS 904l flat bars are used as starting material for producing varieties of machinery components, fabrications, and parts. These stainless steel 904l flat bars can be hot forged, cold forged or directly machined to produce a range of products.

Anand Steels is a stockist and supplier of SS 904L flat Flat Bars in metric and imperial sizes. SS 904L flat bars are available in cold finish or hot finish condition to ASTM A276/A276M and A479/A479M material specifications. These 904L flat bars are also available in forged condition to ASTM A182 F904L specification. These 904L flat bars are available in different diameter, lengths and surface finishes. SS 904l flat bars are duly marked for traceability. We offer worldwide shipping by Sea or Air freight options.

For more information on SS 904L Flat Bars, see below details.

Chemical Requirements for SS 904L Flat Bars

Elements Composition, %
Carbon (C) 0.02 Max
Manganese (Mn) 2.00 Max
Phosphorus (P) 0.04 Max
Sulfur (S) 0.03 Max
Silicon (Si) 1.00 Max
Chromium (Cr) 19.00 – 23.00 Max
Nickel (Ni) 23.00 – 28.00 Max
Molybdenum 4.00 – 5.00 Max
Copper (Cu) 1.00 – 2.00 Max
Nitrogen (N) 0.10 Max

Mechanical Requirements for SS 904L Flat Bars

Elements Composition
Tensile Strength, min ksi [MPa] 71 [490]
Yield Strength, min ksi [MPa] 31 [215]
Elongation in 2 inch or 50mm (or 4D), min % Longitudinal 35
Transverse 25

Applications for SS 904L Flat Bars
