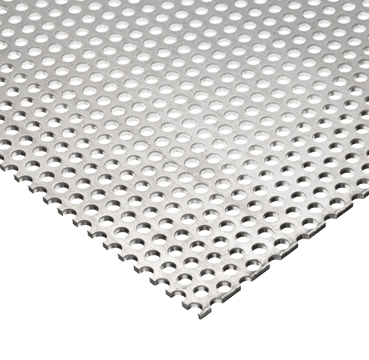

AISI 904L Perforated Sheets and Plates
AISI 904L Perforated Sheets and Plates are used for filtration in industrial applications involving sulphuric and phosphoric acid processing. These 904l perforated sheets and plates are produced from prime 904l material to ASTM A240/A240M Type 904L / UNS N08904 material specifications. These 904L stainless steel perforated sheets and plates are available in variety of thickness, width and breadth; supplied with required surface treatments and finishes.
Anand Steels is a manufacturer and supplier of AISI 904L perforated sheets and plates. AISI 904L perforated sheets and plates are produced, tested and certified as required.. We offer worldwide shipping by Sea or Air freight options.
For more information on AISI 904L Perforated Sheets and Plates , see below details.
- Gauge Thickness: Above 1mm to 50mm
- Fabrication Weight: Up to 5000 Kilograms
- Construction: Welded/Forged/Cast/As-Rolled
- Material Specifications: ASTM A240/A240M Type 904L / UNS N08904, Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
- Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA
Chemical Requirements for AISI 904L Perforated Sheets and Plates
| Elements | Composition, % |
|---|---|
| Carbon (C) | 0.02 Max |
| Manganese (Mn) | 2.00 Max |
| Phosphorus (P) | 0.04 Max |
| Sulfur (S) | 0.03 Max |
| Silicon (Si) | 1.00 Max |
| Chromium (Cr) | 19.00 – 23.00 Max |
| Nickel (Ni) | 23.00 – 28.00 Max |
| Molybdenum | 4.00 – 5.00 Max |
| Copper (Cu) | 1.00 – 2.00 Max |
| Nitrogen (N) | 0.10 Max |
Mechanical Requirements for AISI 904L Perforated Sheets and Plates
| Elements | Composition | |
|---|---|---|
| Tensile Strength, min ksi [MPa] | 71 [490] | |
| Yield Strength, min ksi [MPa] | 31 [215] | |
| Elongation in 2 inch or 50mm (or 4D), min % | Longitudinal | 35 |
| Transverse | 25 | |
Applications for AISI 904L Perforated Sheets and Plates
- Process equipment in chemical industry
- Petrochemical industry
- Bleaching equipment in the pulp and paper industry
- Flue gas cleaning
- Desalination
- Seawater handling
- Hydrometallurgy
- Food and beverage
- Pharmaceuticals
- Heat exchangers
