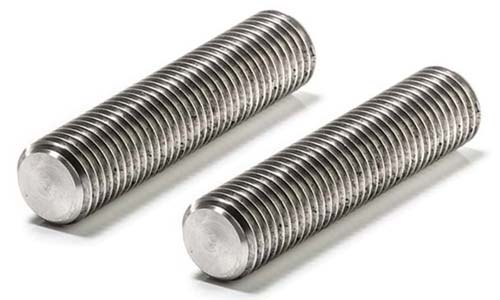

SS 904L Stud Bolts
SS 904L Stud Bolts are used for fixing components together such as flanges, valves, strainers, and other pipeline components. Common types of SS 904l stud bolts includes, fully threaded or continuous threaded stud bolts, tap end threaded stud bolts, double end threaded stud bolts, double end with reduced shank stud bolts, welding stud bolts, etc.
Anand Steels manufactures and supplies SS 904L stud bolts in metric and imperial sizes. SS 904L stud bolts are manufactured to ASTM A182 F904L forged material. SS 904L stud bolts are manufactured from ASTM A276/A276M and A479/A479M bar stock specifications. These stainless steel 904L stud bolts are constructed with dimensions referenced to various ASME/DIN/ISO/UNI/PN/BS and BIS standards. SS 904l stud bolts are duly marked for traceability. We offer worldwide shipping by Sea or Air freight options.
For more information on SS 904L Stud Bolts, see below details.
- Categories: fully threaded or continuous threaded stud bolts, tap end threaded stud bolts, double end threaded stud bolts, double end with reduced shank stud bolts, welding stud bolts, etc.
- Sizes: M1 to M180 in Metric & #1 to 8” in Imperial.
- Threads: Metric coarse, fine, extra fine, imperial coarse, UNC, UNF, UNEF, 8UN Fixed, BSW, BSF and ACME.
- Construction: Cold Forged, Hot Forged, Bar Stock Machined.
- Dimensions & Tolerances: ASME / DIN / ISO / UNI / PN/ IFI / BIS / BS / EU and CSN
- Material Specifications: ASTM / ASME A182 F904L, ASTM A276/A276M and A479/A479M Type 904L / UNS N08904, Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
- Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA
Chemical Requirements for SS 904L Stud Bolts
| Elements | Composition, % |
|---|---|
| Carbon (C) | 0.02 Max |
| Manganese (Mn) | 2.00 Max |
| Phosphorus (P) | 0.04 Max |
| Sulfur (S) | 0.03 Max |
| Silicon (Si) | 1.00 Max |
| Chromium (Cr) | 19.00 – 23.00 Max |
| Nickel (Ni) | 23.00 – 28.00 Max |
| Molybdenum | 4.00 – 5.00 Max |
| Copper (Cu) | 1.00 – 2.00 Max |
| Nitrogen (N) | 0.10 Max |
Mechanical Requirements for SS 904L Stud Bolts
| Elements | Composition | |
|---|---|---|
| Tensile Strength, min ksi [MPa] | 71 [490] | |
| Yield Strength, min ksi [MPa] | 31 [215] | |
| Elongation in 2 inch or 50mm (or 4D), min % | Longitudinal | 35 |
| Transverse | 25 | |
Applications for SS 904L Stud Bolts
- Process equipment in chemical industry
- Petrochemical industry
- Bleaching equipment in the pulp and paper industry
- Flue gas cleaning
- Desalination
- Seawater handling
- Hydrometallurgy
- Food and beverage
- Pharmaceuticals
- Heat exchangers
