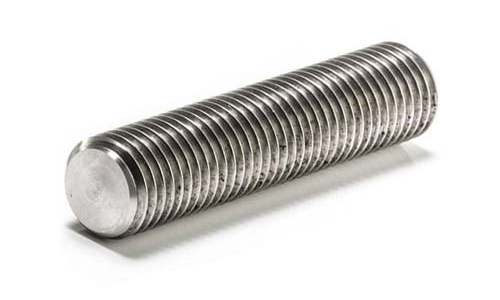

SS 904L Threaded Rods
SS 904L Threaded Rods, when required are further reduced to required length and chamfered to use as stud Threaded Rods for fixing components together such as flanges, valves, strainers, and other pipeline components. SS threaded rods are further categorised by type of threads, UN coarse, fine, extra fine, 8UN fixed, BSW, BSF, ACME etc.
Anand Steels manufactures and supplies SS 904L threaded rods in metric and imperial sizes. SS 904L threaded rods are manufactured to ASTM A182 F904L forged material. SS 904L threaded rods are manufactured from ASTM A276/A276M and A479/A479M bar stock specifications. These stainless steel 904L threaded rods are constructed with dimensions referenced to various ASME/DIN/ISO/UNI/PN/BS and BIS standards. SS 904l threaded rods are duly marked for traceability. We offer worldwide shipping by Sea or Air freight options.
For more information on SS 904L Threaded Rods, see below details.
- Categories: Usually fully or continuous threaded.
- Sizes: M1 to M180 in Metric & #1 to 8” in Imperial.
- Threads: Metric coarse, fine, extra fine, imperial coarse, UNC, UNF, UNEF, 8UN Fixed, BSW, BSF and ACME.
- Construction: Cold Forged, Hot Forged, Bar Stock Machined.
- Dimensions & Tolerances: ASME / DIN / ISO / UNI / PN/ IFI / BIS / BS / EU and CSN
- Material Specifications: ASTM / ASME A182 F904L, ASTM A276/A276M and A479/A479M Type 904L / UNS N08904, Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
- Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA
Chemical Requirements for SS 904L Threaded Rods
| Elements | Composition, % |
|---|---|
| Carbon (C) | 0.02 Max |
| Manganese (Mn) | 2.00 Max |
| Phosphorus (P) | 0.04 Max |
| Sulfur (S) | 0.03 Max |
| Silicon (Si) | 1.00 Max |
| Chromium (Cr) | 19.00 – 23.00 Max |
| Nickel (Ni) | 23.00 – 28.00 Max |
| Molybdenum | 4.00 – 5.00 Max |
| Copper (Cu) | 1.00 – 2.00 Max |
| Nitrogen (N) | 0.10 Max |
Mechanical Requirements for SS 904L Threaded Rods
| Elements | Composition | |
|---|---|---|
| Tensile Strength, min ksi [MPa] | 71 [490] | |
| Yield Strength, min ksi [MPa] | 31 [215] | |
| Elongation in 2 inch or 50mm (or 4D), min % | Longitudinal | 35 |
| Transverse | 25 | |
Applications for SS 904L Threaded Rods
- Process equipment in chemical industry
- Petrochemical industry
- Bleaching equipment in the pulp and paper industry
- Flue gas cleaning
- Desalination
- Seawater handling
- Hydrometallurgy
- Food and beverage
- Pharmaceuticals
- Heat exchangers
