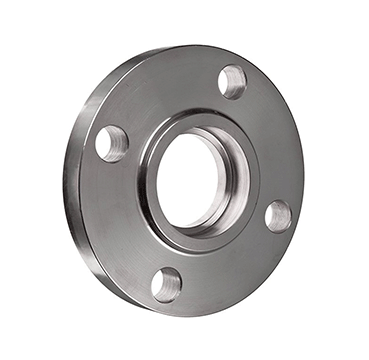

SS 904L Socket Weld Flanges
SS 904L Socket Weld Flanges are ring type flange with step designed at the ID of the flange to be used to receive the pipe for welding. Designed for smaller pipe size for high pressure applications, these 904l socket welding flanges are available from ½” to 24” in ANSI/ASME Pressure class 150/300/400/600/900/1500 and 2500.
Anand Steels is a manufacturer, stockist and supplier of SS 904l socket weld flanges. SS 904L socket weld flanges are manufactured by means of hot forging and machining to required dimensions. Forged 904l socket weld flanges conforms to requirement of ASTM A182 F904L material specification and dimensions to ANSI/ASME B16.5, BS 1560, EN 1092-1, API 6A, 6B, 6BX, ISO, GOST and various DIN standards. SS 904L socket weld flanges can also be manufactured from thick plates to ASTM A240/A240M Type 904L (UNS N08904) material specification. Stainless steel 904l socket weld pipe flanges are duly marked for traceability. We offer worldwide shipping by Sea or Air freight options.
For more information on SS 904L Socket Weld Flanges, see below details.
- Sizes: ½” to 24” NPS
- Wall Thickness: Schedule 5/10/20/40/60/80/100/120/160/5S/10S/40S/80S
- Pressure Ratings: Class 75/150/300/400/600/900/1500/2500 and many others
- Ends: Butt-Weld, Socket-Weld, Screwed, Male-Female, Tongue and Groove
- Construction: Forged and Plate Machined
- Dimensions & Tolerances;: ASME / ANSI , BS, EN, ISO, GOST and DIN Standards
- Material Specifications: ASTM / ASME A182 F904L, ASTM A240/A240M Type 904L / UNS N08904, Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
- Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA
Chemical Requirements for SS 904L Socket Weld Flanges
| Elements | Composition, % |
|---|---|
| Carbon (C) | 0.02 Max |
| Manganese (Mn) | 2.00 Max |
| Phosphorus (P) | 0.04 Max |
| Sulfur (S) | 0.03 Max |
| Silicon (Si) | 1.00 Max |
| Chromium (Cr) | 19.00 – 23.00 Max |
| Nickel (Ni) | 23.00 – 28.00 Max |
| Molybdenum | 4.00 – 5.00 Max |
| Copper (Cu) | 1.00 – 2.00 Max |
| Nitrogen (N) | 0.10 Max |
Mechanical Requirements for SS 904L Socket Weld Flanges
| Elements | Composition | |
|---|---|---|
| Tensile Strength, min ksi [MPa] | 71 [490] | |
| Yield Strength, min ksi [MPa] | 31 [215] | |
| Elongation in 2 inch or 50mm (or 4D), min % | Longitudinal | 35 |
| Transverse | 25 | |
Applications for SS 904L Socket Weld Flanges
- Process equipment in chemical industry
- Petrochemical industry
- Bleaching equipment in the pulp and paper industry
- Flue gas cleaning
- Desalination
- Seawater handling
- Hydrometallurgy
- Food and beverage
- Pharmaceuticals
- Heat exchangers
