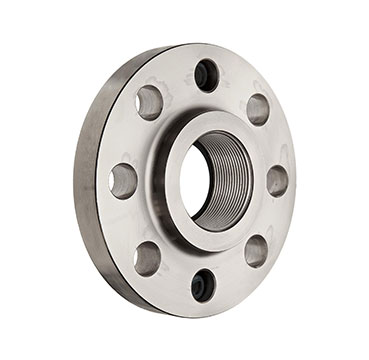

SS 904L Threaded Flanges
SS 904L Threaded Flanges are ring type flange with female pipe threads machined on its ID to receive a mating male pipe threaded pipe. Designed for smaller size and low pressure piping, these threaded flanges can come very handy while maintenance.
Anand Steels is a manufacturer, stockist and supplier of SS 904l threaded flanges. These 904l threaded flanges come with flat face, raised face or ring type joint configuration. SS 904L threaded flanges are manufactured to ASTM A182 F904L forged material specification and ANSI/ASME B16.5, B16.36, B16.47 Series A, Series B, B16.48, BS 10, BS 1560, EN 1092-1, API 6A, 6B, 6BX, ISO, GOST and various DIN standards. SS 904L threaded flanges can also be manufactured by merely machining heavy gauge plates to ASTM A240/A240M Type 904L (UNS N08904) material specification. Stainless steel 904l threaded pipe flanges are duly marked for traceability. We offer worldwide shipping by Sea or Air freight options.
For more information on SS 904L Threaded Flanges, see below details.
- Sizes: ½” to 24” NPS
- Pressure Ratings: Class 75/150/300/400/600/900/1500/2500; PN6, PN10, PN16, PN25, PN40, PN64 and PN100.
- Facings: Flat Face, Raised Face and Ring Type Joint.
- Construction: Forged and Plate Machined
- Dimensions & Tolerances;: ASME / ANSI , BS, EN, ISO, GOST and DIN Standards
- Material Specifications: ASTM / ASME A182 F904L, ASTM A240/A240M Type 904L / UNS N08904, Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
- Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA
Chemical Requirements for SS 904L Threaded Flanges
| Elements | Composition, % |
|---|---|
| Carbon (C) | 0.02 Max |
| Manganese (Mn) | 2.00 Max |
| Phosphorus (P) | 0.04 Max |
| Sulfur (S) | 0.03 Max |
| Silicon (Si) | 1.00 Max |
| Chromium (Cr) | 19.00 – 23.00 Max |
| Nickel (Ni) | 23.00 – 28.00 Max |
| Molybdenum | 4.00 – 5.00 Max |
| Copper (Cu) | 1.00 – 2.00 Max |
| Nitrogen (N) | 0.10 Max |
Mechanical Requirements for SS 904L Threaded Flanges
| Elements | Composition | |
|---|---|---|
| Tensile Strength, min ksi [MPa] | 71 [490] | |
| Yield Strength, min ksi [MPa] | 31 [215] | |
| Elongation in 2 inch or 50mm (or 4D), min % | Longitudinal | 35 |
| Transverse | 25 | |
Applications for SS 904L Threaded Flanges
- Process equipment in chemical industry
- Petrochemical industry
- Bleaching equipment in the pulp and paper industry
- Flue gas cleaning
- Desalination
- Seawater handling
- Hydrometallurgy
- Food and beverage
- Pharmaceuticals
- Heat exchangers
