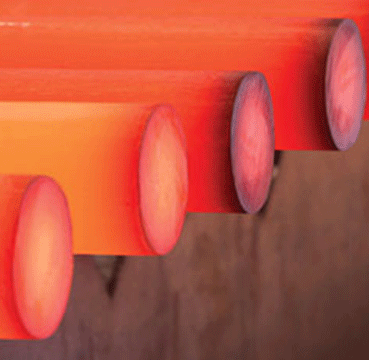

SS 904L Forged Bars

SS 904L Forged Bars can be used are starting material for manufacturer of fittings, flanges, valve bodies, strainers, and high pressure containing components. These SS 904L forged parts have finer grain structure and high integrity in containing high pressure that are suitable for wide range of services.

Anand Steels is a manufacturer and supplier of SS 904l forged bars and rods in variety of diameters and length with customization. These 904l forged bars are fully compliance to ASTM A182/A182M F904L material specifications. Stainless steel 904l forgings are duly marked for traceability. We offer worldwide shipping by Sea or Air freight options.

For more information on SS 904L Forged Bars, see below details.

Sizes: 10mm to 600mm in Diameter
Construction: Hot Forging
Dimensions & Tolerances;: ASME / ANSI , BS, EN, ISO, GOST and DIN Standards
Material Specifications: ASTM / ASME A182 F904L, Type 904L / UNS N08904, Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA

Chemical Requirements for SS 904L Forged Bars

Elements	Composition, %
Carbon (C)	0.02 Max
Manganese (Mn)	2.00 Max
Phosphorus (P)	0.04 Max
Sulfur (S)	0.03 Max
Silicon (Si)	1.00 Max
Chromium (Cr)	19.00 – 23.00 Max
Nickel (Ni)	23.00 – 28.00 Max
Molybdenum	4.00 – 5.00 Max
Copper (Cu)	1.00 – 2.00 Max
Nitrogen (N)	0.10 Max

Mechanical Requirements for SS 904L Forged Bars

Elements		Composition
Tensile Strength, min ksi [MPa]		71 [490]
Yield Strength, min ksi [MPa]		31 [215]
Elongation in 2 inch or 50mm (or 4D), min %	Longitudinal	35
Elongation in 2 inch or 50mm (or 4D), min %	Transverse	25

Applications for SS 904L Forged Bars

Process equipment in chemical industry
Petrochemical industry
Bleaching equipment in the pulp and paper industry
Flue gas cleaning
Desalination
Seawater handling
Hydrometallurgy
Food and beverage
Pharmaceuticals
Heat exchangers
