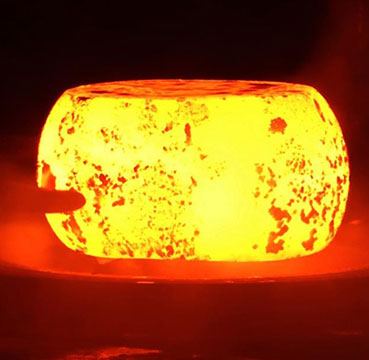

SS 904L Forged Blocks
SS 904L Forged Blocks are fine grained semi-finished product used for further manufacturing of making high strength components for various services. These SS 904L forged blocks can be machined or fabricated into finish products such as valve bodies, strainers, or other components for use in high temperature or high pressure applications.
Anand Steels is a manufacturer and supplier of SS 904l forged blocks in variety of sizes and thickness. 904L forged blocks are produced in full compliance with ASTM A182/A182M F904L material specifications. Stainless steel 904l forged blocks are duly marked for traceability. We offer worldwide shipping by Sea or Air freight options.
For more information on SS 904L Forged Blocks, see below details.
- Sizes: up to 600mm in diameter
- Forgings Weight: from 100 grams to 5000 Kilograms.
- Construction: Hot Forging
- Dimensions & Tolerances;: ASME / ANSI , BS, EN, ISO, GOST and DIN Standards
- Material Specifications: ASTM / ASME A182 F904L, Type 904L / UNS N08904, Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
- Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA
Chemical Requirements for SS 904L Forged Blocks
| Elements | Composition, % |
|---|---|
| Carbon (C) | 0.02 Max |
| Manganese (Mn) | 2.00 Max |
| Phosphorus (P) | 0.04 Max |
| Sulfur (S) | 0.03 Max |
| Silicon (Si) | 1.00 Max |
| Chromium (Cr) | 19.00 – 23.00 Max |
| Nickel (Ni) | 23.00 – 28.00 Max |
| Molybdenum | 4.00 – 5.00 Max |
| Copper (Cu) | 1.00 – 2.00 Max |
| Nitrogen (N) | 0.10 Max |
Mechanical Requirements for SS 904L Forged Blocks
| Elements | Composition | |
|---|---|---|
| Tensile Strength, min ksi [MPa] | 71 [490] | |
| Yield Strength, min ksi [MPa] | 31 [215] | |
| Elongation in 2 inch or 50mm (or 4D), min % | Longitudinal | 35 |
| Transverse | 25 | |
Applications for SS 904L Forged Blocks
- Process equipment in chemical industry
- Petrochemical industry
- Bleaching equipment in the pulp and paper industry
- Flue gas cleaning
- Desalination
- Seawater handling
- Hydrometallurgy
- Food and beverage
- Pharmaceuticals
- Heat exchangers
