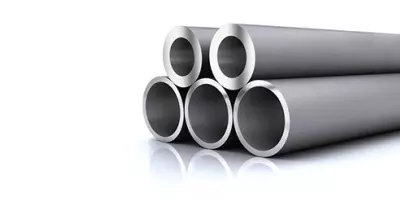

SS 904L Pipes are manufactured from size 3/8 Inches to 64 Inches in nominal diameter and various schedules as per ASME B36.10M and B36.19M with single random length of 5-7 meters or double random length of 11-13 meters. SS 904L pipe is available in seamless construction up to 24 Inches and up to 48 Inches in ERW, EFW or other welded fabrication. These 904L SS pipes can be supplied with plain end (PE), bevelled end (BE) and threaded end (TE). We can also supply carbon steel and alloy steel pipes with SS 904L metal cladding.
Anand Steels is a supplier of SS 904L pipes in SCH 10/40/80/160 from stock. Other sizes and schedules of SS 904L pipes can be made to Mill order. These SS 904L pipes can be strapped into bundles and stuffed in 20Ft or 40Ft container or confined to a closed wooden packaging depending upon the quantity and mode of shipment. We offer worldwide shipping by Sea or Air freight options.
For more information on SS 904L pipes, see below details.
Elements | Composition, % |
---|---|
Carbon (C) | 0.02 Max |
Manganese (Mn) | 2.00 Max |
Phosphorus (P) | 0.04 Max |
Sulfur (S) | 0.03 Max |
Silicon (Si) | 1.00 Max |
Chromium (Cr) | 19.00 – 23.00 Max |
Nickel (Ni) | 23.00 – 28.00 Max |
Molybdenum | 4.00 – 5.00 Max |
Copper (Cu) | 1.00 – 2.00 Max |
Nitrogen (N) | 0.10 Max |
Elements | Composition | |
---|---|---|
Tensile Strength, min ksi [MPa] | 71 [490] | |
Yield Strength, min ksi [MPa] | 31 [215] | |
Elongation in 2 inch or 50mm (or 4D), min % | Longitudinal | 35 |
Transverse | 25 |
