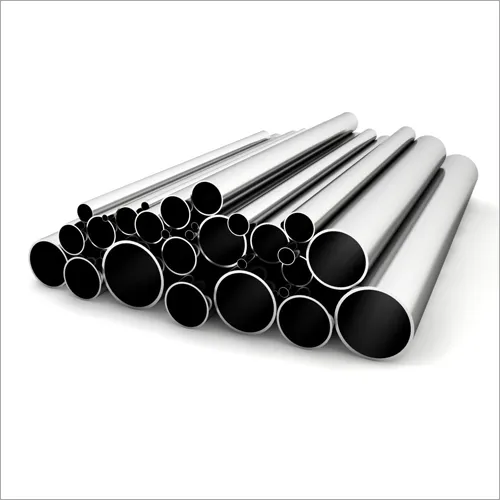

SS 904L EFW Pipes
SS 904L EFW Pipes are manufactured from size 4 Inches to 48 Inches in nominal diameter and various schedules as per ASME B36.10M and B36.19M with single random length of 5-7 meters or double random length of 11-13 meters. These 904L SS EFW pipes can be supplied with plain end (PE), bevelled end (BE) and threaded end (TE). We can also supply carbon steel and alloy steel EFW pipes with SS 904L metal cladding.
Anand Steels is a supplier of SS 904L EFW pipes in SCH 10/40/80 from stock. Other sizes and schedules of SS 904L pipes can be made to Mill order. These Stainless steel 904L EFW pipes can be strapped into bundles and stuffed in 20Ft or 40Ft container or confined to a closed wooden packaging depending upon the quantity and mode of shipment. We offer worldwide shipping by Sea or Air freight options.
For more information on SS 904L EFW Pipes, see below details.
- Sizes: 4” to 48” NPS
- Wall Thickness: Schedule 5/10/20/40/60/80/5S/10S/40S/80S
- Length: Single Random (5-7 Meters) / Double Random (11-13 Meters)
- Ends: Bevelled End (BE), Plain Ends (PE), Threaded End (TE)
- Construction: Electric Fusion Welded (EFW)
- Dimensions & Tolerances;: ASME / ANSI B36.10M & B36.19M, DIN, ISO, BS Standards
- Material Specifications: ASTM / ASME SA358 UNS NN08904 (TP 904L), Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
- Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA
Chemical Requirements for SS 904L EFW Pipes
| Elements | Composition, % |
|---|---|
| Carbon (C) | 0.02 Max |
| Manganese (Mn) | 2.00 Max |
| Phosphorus (P) | 0.04 Max |
| Sulfur (S) | 0.03 Max |
| Silicon (Si) | 1.00 Max |
| Chromium (Cr) | 19.00 – 23.00 Max |
| Nickel (Ni) | 23.00 – 28.00 Max |
| Molybdenum | 4.00 – 5.00 Max |
| Copper (Cu) | 1.00 – 2.00 Max |
| Nitrogen (N) | 0.10 Max |
Mechanical Requirements for SS 904L EFW Pipes
| Elements | Composition | |
|---|---|---|
| Tensile Strength, min ksi [MPa] | 71 [490] | |
| Yield Strength, min ksi [MPa] | 31 [215] | |
| Elongation in 2 inch or 50mm (or 4D), min % | Longitudinal | 35 |
| Transverse | 25 | |
Applications for SS 904L EFW Pipes
- Process equipment in chemical industry
- Petrochemical industry
- Bleaching equipment in the pulp and paper industry
- Flue gas cleaning
- Desalination
- Seawater handling
- Hydrometallurgy
- Food and beverage
- Pharmaceuticals
- Heat exchangers
