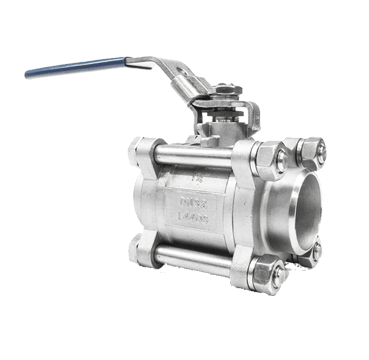

SS 904L Ball Valves
SS 904L Ball Valves are quarter turn shut-off valves that control flow of liquid or gas by means of a rotary ball having a bore. Common types of SS 904l ball valves includes full bore, reduced port, V port and Trunnion type with flanged, socket-weld, butt-weld and screwed end connections.
Anand Steels is a manufacturer and supplier of SS 904L ball valves with flanged, butt-weld, socket-weld and screwed ends. SS 904L valves are manufactured to ANSI/ASME B16.34, API 602 and BS 5351 standards. 904L ball valves and valves parts are constructed with ASTM A182/A182M F904L, A276/A276M type 904L and A479/A479M UNS N08904 material specifications. Stainless steel 904l valves are duly marked for traceability. We offer worldwide shipping by Sea or Air freight options.
For more information on SS 904L Ball Valves, see below details.
- Sizes: 3/8” to 72” NPS
- Sub Types: Full Port, Reduced Port, V Port, Trunnion Type.
- Pressure Ratings: Class 75/150/300/400/600/900/1500/2500 and others
- Connections: Butt-Weld, Socket-Weld, Screwed, and Flanged End.
- Construction: Cast, Forged and Bar Machined.
- Dimensions & Tolerances;: ASME / ANSI, API, BS, EN, ISO, GOST and DIN Standards
- Material Specifications: ASTM / ASME A182 F904L, ASTM A479/A479M Type 904L / UNS N08904, Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
- Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA
Chemical Requirements for SS 904L Ball Valves
| Elements | Composition, % |
|---|---|
| Carbon (C) | 0.02 Max |
| Manganese (Mn) | 2.00 Max |
| Phosphorus (P) | 0.04 Max |
| Sulfur (S) | 0.03 Max |
| Silicon (Si) | 1.00 Max |
| Chromium (Cr) | 19.00 – 23.00 Max |
| Nickel (Ni) | 23.00 – 28.00 Max |
| Molybdenum | 4.00 – 5.00 Max |
| Copper (Cu) | 1.00 – 2.00 Max |
| Nitrogen (N) | 0.10 Max |
Mechanical Requirements for SS 904L Ball Valves
| Elements | Composition | |
|---|---|---|
| Tensile Strength, min ksi [MPa] | 71 [490] | |
| Yield Strength, min ksi [MPa] | 31 [215] | |
| Elongation in 2 inch or 50mm (or 4D), min % | Longitudinal | 35 |
| Transverse | 25 | |
Applications for SS 904L Ball Valves
- Process equipment in chemical industry
- Petrochemical industry
- Bleaching equipment in the pulp and paper industry
- Flue gas cleaning
- Desalination
- Seawater handling
- Hydrometallurgy
- Food and beverage
- Pharmaceuticals
- Heat exchangers
