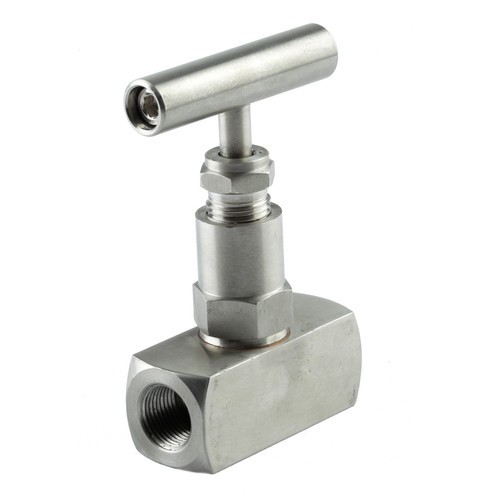

SS 904L Needle Valves
SS 904L Needle Valves are regulating valves that allow fine control of clean gases and fluid flowing through the pipeline. Needle valves are small sized valves and generally capable of relatively low flow rates. 904L SS needle valves can be used to start, stop, and regulate the flow rate within a pipeline.
Anand Steels is a manufacturer and supplier of SS 904L needle valves with size ranging from 1/8” to 2” NPS. SS 904L valves are generally manufactured with screwed ends but flanged, socket-weld and butt-weld can also be made available on make-to-order basis. 904L needle valves and valves parts are constructed with ASTM A182/A182M F904L, A276/A276M type 904L and A479/A479M UNS N08904 material specifications. Stainless steel 904l needle valves are duly marked for traceability. We offer worldwide shipping by Sea or Air freight options.
For more information on SS 904L Needle Valves, see below details.
- Sizes: 1/8” to 2” NPS
- Pressure Ratings: Class 75/150/300/400/600/900/1500/2500 and others
- Connections: Butt-Weld, Socket-Weld, Screwed, and Flanged End.
- Construction: Forged and Bar Stock Machined.
- Dimensions & Tolerances;: ASME / ANSI, API, BS, EN, ISO, GOST and DIN Standards
- Material Specifications: ASTM / ASME A182 F904L, ASTM A479/A479M Type 904L / UNS N08904, Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
- Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA
Chemical Requirements for SS 904L Needle Valves
| Elements | Composition, % |
|---|---|
| Carbon (C) | 0.02 Max |
| Manganese (Mn) | 2.00 Max |
| Phosphorus (P) | 0.04 Max |
| Sulfur (S) | 0.03 Max |
| Silicon (Si) | 1.00 Max |
| Chromium (Cr) | 19.00 – 23.00 Max |
| Nickel (Ni) | 23.00 – 28.00 Max |
| Molybdenum | 4.00 – 5.00 Max |
| Copper (Cu) | 1.00 – 2.00 Max |
| Nitrogen (N) | 0.10 Max |
Mechanical Requirements for SS 904L Needle Valves
| Elements | Composition | |
|---|---|---|
| Tensile Strength, min ksi [MPa] | 71 [490] | |
| Yield Strength, min ksi [MPa] | 31 [215] | |
| Elongation in 2 inch or 50mm (or 4D), min % | Longitudinal | 35 |
| Transverse | 25 | |
Applications for SS 904L Needle Valves
- Process equipment in chemical industry
- Petrochemical industry
- Bleaching equipment in the pulp and paper industry
- Flue gas cleaning
- Desalination
- Seawater handling
- Hydrometallurgy
- Food and beverage
- Pharmaceuticals
- Heat exchangers
