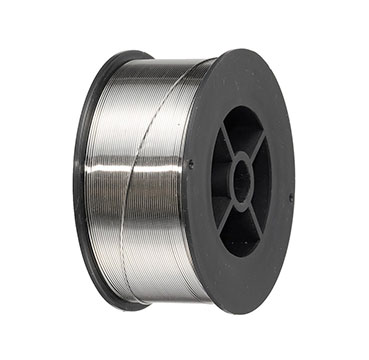

SS 904L Weaving Wires
SS 904L Weaving Wires are used for weaving wires meshes for filtration applications or as a filler metal for welding purposes. SS 904l wires can be used for braiding pipes. These 904L wires can also be used as a starting material for cold headed bolts and screws, making high strength ropes for special applications.
Anand Steels is a stockist and supplier of SS 904L weaving wires and allied products. SS 904L wires are available to ASTM A276/A276M and A479/A479M material specifications. These 904L stainless steel wires are available in wide range of diameters, packaging from reputed mills from around the world. We offer worldwide shipping by Sea or Air freight options.
For more information on SS 904L Weaving Wires, see below details.
- Sizes: 0.1mm to 16mm
- Length: 1000mm and coil form.
- Construction: Cold Finish
- Material Specifications: ASTM A276/A276M and A479/A479M Type 904L / UNS N08904, Uranus® B6, X1-Ni-Cr-Mo-Cu-25-20-5, DIN/EN/Werkstoff Number 1.4539
- Origin: India, China, Taiwan, Korea, Japan, Sweden, Italy, France, Germany, UK & USA
Chemical Requirements for SS 904L Weaving Wires
| Elements | Composition, % |
|---|---|
| Carbon (C) | 0.02 Max |
| Manganese (Mn) | 2.00 Max |
| Phosphorus (P) | 0.04 Max |
| Sulfur (S) | 0.03 Max |
| Silicon (Si) | 1.00 Max |
| Chromium (Cr) | 19.00 – 23.00 Max |
| Nickel (Ni) | 23.00 – 28.00 Max |
| Molybdenum | 4.00 – 5.00 Max |
| Copper (Cu) | 1.00 – 2.00 Max |
| Nitrogen (N) | 0.10 Max |
Mechanical Requirements for SS 904L Weaving Wires
| Elements | Composition | |
|---|---|---|
| Tensile Strength, min ksi [MPa] | 71 [490] | |
| Yield Strength, min ksi [MPa] | 31 [215] | |
| Elongation in 2 inch or 50mm (or 4D), min % | Longitudinal | 35 |
| Transverse | 25 | |
Applications for SS 904L Weaving Wires
- Process equipment in chemical industry
- Petrochemical industry
- Bleaching equipment in the pulp and paper industry
- Flue gas cleaning
- Desalination
- Seawater handling
- Hydrometallurgy
- Food and beverage
- Pharmaceuticals
- Heat exchangers
